Caravan

GR17.6

Contact for Pricing
Enquire Now
Stock availability to be confirmed with your local dealership
Home/Caravans/GR17.6

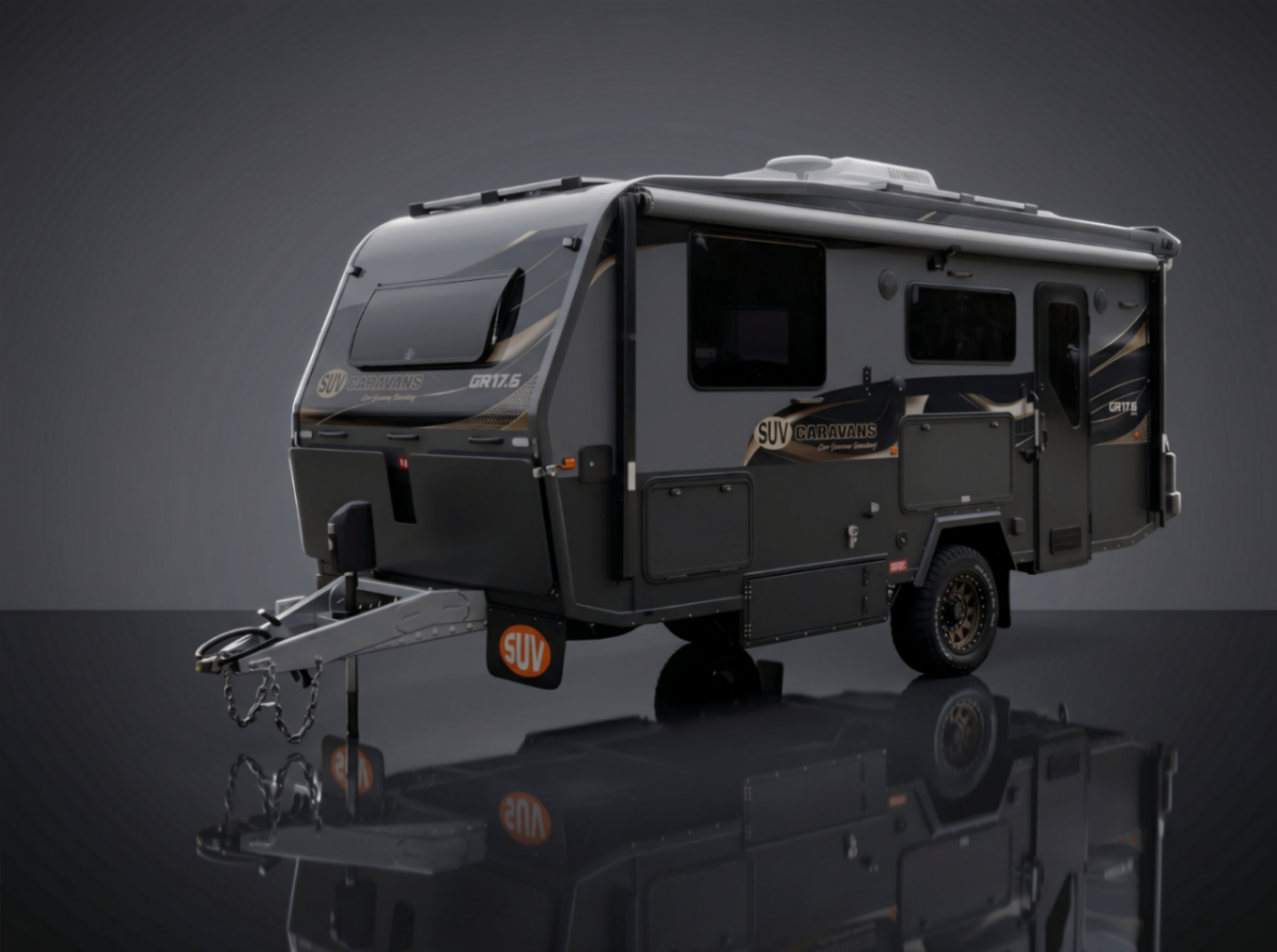

About This Model

The SUV GR17.6 is part of SUV’s Grand Retreat caravan series, purpose-built for travellers who want comfort, space and practicality. The GR17.6 focuses on livability, ease of towing and everyday comfort — making it an excellent choice for couples planning relaxed road trips across Australia. At 18ft, the GR17.6 offers a versatile layout that maximises space without feeling oversized. The walk-around island bed for easy access is a standout feature, alongside the cafe-style seating. Cooking is effortless thanks to the external kitchen with fridge drawer and push-button rollout awning as standard, complemented by an internal kitchenette featuring a built-in microwave, induction cooktop, full-size fridge/freezer and sink. The full ensuite completes the package, with separate shower and toilet rooms and a wall-mounted washing machine — delivering the kind of convenience typically reserved for larger touring caravans. The GR17.6 is versatility at its finest.

Key Features

  • Designed for classic Aussie caravanning road trips
  • Spacious 18ft couples' caravan
  • Dual kitchen convenience and comfortable café-style seating
  • Full ensuite with premium inclusions

Key Specifications

Berth
2/3
Internal Feet
18ft
Length
7000mm
Width
2250mm
Height
3020mm
ATM
3000kg
Tare
2520kg
GTM
2784kg
Carrying Capacity
480kg
Suitable For
Couple & Family

All weights and dimensions are approximate and may vary between individual units due to manufacturing tolerances and optional configurations. Verify actual specifications with your dealership prior to purchase.

Full Specifications

  • YAW Duct Tail (Patent Pending 2025906536)
  • Full-Length Electric Rollout Awning with Manual Override
  • Roof-Mounted Air Conditioning
  • Queen Island Bed with Innerspring Mattress
  • Bluetooth Stereo with Internal and External Speakers
  • Bike / Hitch Receiver on Rear
  • 1x Spare Tyre & Rim (Mounted Underneath)
  • Alko Hitch (to Suit 50mm Ball)
  • Jerry Can Holders
  • Honeycomb Floor
  • Vinyl Floor Covering
  • Choice of 7-Pin Trailer Plug Fitted
  • Australian Engineer Approved Chassis, Drawbar, and Suspension
  • Full Galvanised Chassis and Suspension Arms
  • Australian Engineer Approved Series 4 Recovery Suspension with Galvanised Swing Arms
  • Twin Shocks and Heavy-Duty Springs
  • Bolt-On Stub Axle (Spare) for Recovery Suspension
  • 16”/17” Alloy Rims with All-Terrain Tyres (265/75R16) / (265/70R17) - DM
  • Reverse Camera with Independent Screen
  • 12” Electric Brakes and Breakaway System Fitted
  • Fire Extinguisher
  • Smoke Detector
  • Lockable Security Screen Door with Midgee Protection
  • 2x Fresh Water Tanks (Total approx. 200L)
  • 1x Grey Water Tank (Approx. 70L)
  • Large Internal Ensuite with Separate Toilet and Shower Cubicle
  • Wall-Mounted Washing Machine
  • External Shower Port
  • Hot & Cold Water Plumbed to All Sinks & Shower
  • Mains Water Connection
  • Roof-Mounted Solar Panels
  • Lithium Batteries
  • 3000W Renogy Inverter
  • Renogy Dual Input DCDC/MPPT Charger
  • Renogy One Core
  • Renogy Smart Distribution Box
  • Renogy One Vision 7
  • Inbuilt Charging Pads
  • USB and USB-C Charging Points
  • Internal 240V and 12V Power Options
  • 2x 4kg Gas Bottle Holders (Gas Bottles Not Included)
  • Integrated Gas Hot Water System
  • Internal Kitchenette with Inbuilt Induction Cooktop, Microwave, and Rangehood
  • External 90-Degree Swing-Around Kitchen with 4-Burner Gas Stove & Windguard (AGA Approved)
  • Pantry Drawers and Fridge Drawer
  • 157L Upright Fridge / Freezer (Internal)
  • Internal and External Cooking Areas
  • Internal Kitchen Sink & Induction Cooktop
  • XPS High-Density Foam Walls
  • NEW 17” Gold Rims
  • NEW Integrated Double Step
  • NEW SUV Roof Airflow Duct System
  • Privacy Windows and Midge-Proof Fly Screens
  • LED Awning Lights
  • External LED Lights with Interchangeable Yellow and White Lights
  • Mood Lighting
  • External Storage Compartments and Generator Slide
  • Renogy Smart Display Monitor
  • Internal Seating with Removable Table
  • Bedside Tables with Storage Drawers
  • Internal Storage Drawers, Cupboards & Hanging Space
  • Roof-Mounted Dome TV Antenna
  • Storage in Ensuite
  • Electric Lift Jockey Wheel with Manual Override
  • 12V Internal Fans
  • Café Seating or L Shape Seating Option
  • 12V Smart TV
  • 95L Trakmate Fridge/Freezer
  • Caravan Starter Kit
  • Enclosable Annex with Floor, Walls, Skirt & Anti-Flapper Kit
  • Trakmate Generator
  • DO35 Hitch
  • Extended Warranty
  • Exterior Ceramic Coating Protection
  • Interior Ceramic Coating Protection
  • SUV Mat
  • Weight Distribution Hitch
  • Composting Toilet

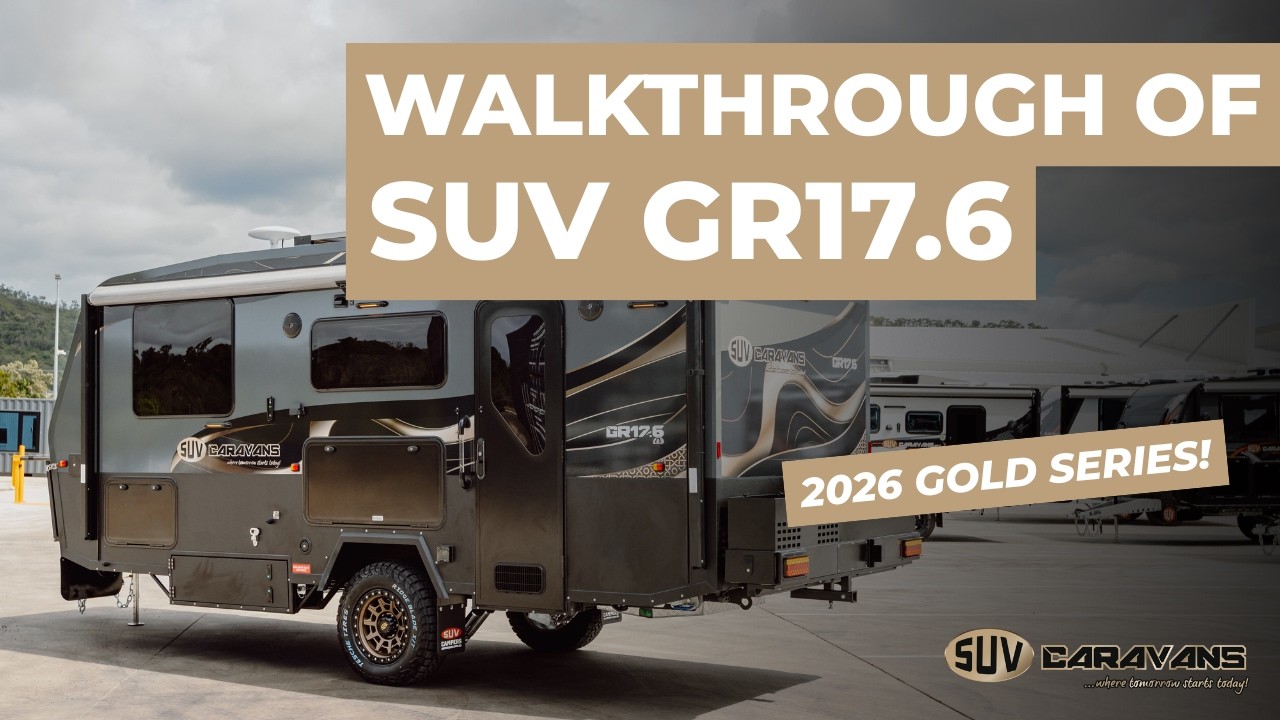

Video Tour

The SUV Difference

Uncompromising Excellence

Easy to Use

Famous for ease of use! Push-button awnings and Air Annex systems let you set up in minutes and start relaxing immediately.

Australian Engineered

Built tough for Australian conditions! Each model features locally engineered and certified chassis, drawbar and suspension systems.

Price Match Guarantee

Committed to providing the best value. We offer a Price Match Guarantee on any like-for-like competitor products for your confidence.

5 Year Chassis Warranty

Built to last! Backed by a comprehensive 5-year Chassis Warranty. Claims and repairs easily processed through our showrooms.

Innovative Design

Pioneers of air-conditioned camper trailers in Australia! In-house design means we continually innovate with the latest features.

Direct from Manufacturer

Purchase directly from the manufacturer. Peace of mind dealing direct, avoiding dealer delivery fees and middleman markups.

Ready to Go

Often have stock ready! Take off in days, not months. If not in stock, our supply chain control provides you with a clear ETA.

Locally Owned & Supported

Proudly Australian owned! Designed and supported locally, ensuring quality service and expertise right here at home.

Owner Reviews

What owners say about the GR17.6

5.0· 1 review

Len Wesley-Smith

SUV Caravans RockhamptonOperated by Guardian Campers & RV Centre
a year ago

Nathan very helpful, did everything possible to help it be a comfortable purchase. Thanks very much, Nathan.

via Google
Common Questions

Frequently Asked Questions

Everything you need to know about your GR17.6 — warranty, towing, servicing, and purchasing.

What tow vehicle do I need?+

Your tow vehicle must be legally compliant and rated to tow at least the ATM (Aggregate Trailer Mass) of the unit. It must also be fitted with a properly functioning electric brake controller. Always verify your vehicle's tow capacity before hitching, and ensure your setup complies with Australian road laws. It is the owner's responsibility to maintain compliance at all times.

Does this unit require an electric brake controller?+

Yes. All SUV Caravans and Camper Trailers that exceed the legal threshold require an electric brake controller fitted to the tow vehicle. Your brake controller must be correctly calibrated before every trip. It is your responsibility to ensure your tow vehicle meets all legal requirements.

Can I tow this on a standard Australian driver's licence?+

In most states, a standard Australian car licence (Class C) allows you to tow a trailer within your vehicle manufacturer's rated towing capacity. If the loaded mass of your rig exceeds your licence conditions, an additional endorsement may be required. Check with your state's transport authority for specific requirements in your area.

What wheel nut torque is required?+

All wheel nuts must be torqued to 160 ft lbs. Check torque before every trip and re-check at regular intervals — particularly when travelling on rough or unsealed roads.

What speed is recommended over corrugated roads?+

We recommend limiting your speed to a maximum of 70 km/h over corrugated or rough unsealed roads. Reduce tyre pressure on both your tow vehicle and the unit for rough terrain, and stop regularly to allow shock absorbers to cool.

What warranty comes with this unit?+

All new SUV Caravans and Camper Trailers are covered by a 12-month warranty from the date of delivery, covering defects in material and workmanship under normal use. From 2025 onwards, the chassis is additionally covered by a 5-year fatigue warranty. The warranty is non-transferable and applies to the original purchaser only.

What third-party components does this unit use?+

Some components are sourced from reputable third-party brands including Truma (heating and hot water), Al-Ko (chassis and suspension), Arena (solar), Renogy (batteries and solar), Victron (power management), and AU Focus (cameras). These components are covered by their respective manufacturer warranties, separate from the SUV Caravans assembly warranty.

How much deposit is required to order?+

A minimum deposit of 10% of the total purchase price is required upon order confirmation.

Is there a cooling-off period on my deposit?+

Yes. A 7-day cooling off period applies from the date of your order. During this time you may cancel and receive a full refund of your deposit. After 7 days, refund decisions are at the sole discretion of SUV Caravans. Special or custom orders cannot be cancelled once placed.

What is the lead time if I order this model?+

Lead times vary depending on the model and current production schedule. In-stock units can generally be collected or delivered promptly after purchase completion. Build-to-order units have longer lead times that will be communicated at the time of your enquiry. Contact your nearest SUV Caravans dealership for current availability.

What services are required after purchase?+

Three preventative maintenance services are required within your 12-month warranty period: 1st service at 1,000 km or within 3 months of delivery; 2nd service at 5,000 km or within 6 months; and 3rd service at 10,000 km or within 12 months — whichever comes first in each case. Missing any service will void your warranty.

Are services included in the purchase price?+

No. Preventative maintenance services are billed separately at your dealership or authorised service agent. Service costs are not included in the purchase price of the unit.

Where can I get this unit serviced?+

All services must be performed at an authorised SUV Caravans Dealership or an Authorised Service Agent. Using an unauthorised repairer may void your warranty. Retain all service receipts as proof — they are required when lodging warranty claims.

Is this unit assembled in Australia?+

Yes. SUV Caravans and Camper Trailers are assembled in Australia using a combination of Australian-made and globally sourced components.

Get Started

Ready to Make It Yours?

Contact our team today to schedule a viewing, discuss financing options, or get answers to your questions about the GR17.6.
